Pixel Shifting Actuator Technology


plastic injection molding
ACT900065V-00 #0.65
< Back

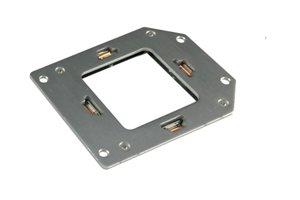

Actuator “ACT900065V-00” is designed for use with the TI DLP® Products 0.65 ECD 4K projector applications, for projector applications. Resolution from 1080P to 4K.
Main features:
• Projected Displacement Tolerance  (typical):
   15%@60 Hz and 50 Hz
• Transition Time (Typical): 1.45ms (waveform15%~85%)
• Max. Working temp. : <100 ° C
•Audible Noise (Typical) : 20.6dBA at 100 cm
• Projected Displacement Distance : ± 3.8 μm
